Shandong Dina Medical Equipment Co., Ltd
Product Technical Specifications
Product name: Electric Tracking Double Pillar Mechanical System
Product model: DUA-C
Product code: SPZL000607
Prepared by: Zhu Bin Reviewed by: Approved by:
Date: January 5th, 2022 Date: Date:
Basic information
Product Name: Electric Tracking Double Pillar Mechanical System
Specification and model: DUA-C
1.1 Product Overview:
1.1.1 Environmental conditions
a) Environmental temperature: 10 ℃~40 ℃;
b) Relative humidity: 30%~75%;
c) Atmospheric pressure: 700hPa~1060hPa.
1.1.2 Power supply conditions
a) The power supply voltage is 2200V, 50Hz, sine wave, and the allowable variation range of the power supply voltage value is 2200V ± 10%;
b) The allowable variation range of frequency value is 50Hz ± 1Hz;
c) The internal resistance of the power supply should not exceed 0.5 Ω;
d) The single-phase power supply capacity shall not be less than 1.5kVA.

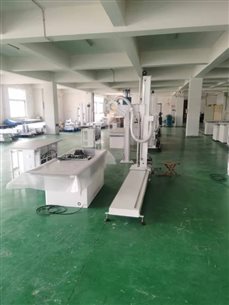

1.2 Product structure:
WeChat images_ twenty trillion and two hundred and twenty billion one hundred and five million thirteen thousand nine hundred and forty-nine
Ground track
Ball tube column
Chest X-ray column
Four phase floating photography bed
Electrical control cabinet
key parameter
Ground rail size: 2700mm * 400mm * 200mm Electromagnet brake
Lifting range: 300mm -17000mm
Tracking range: 300mm -17000mm
Four phase floating bed: 2000mm * 650mm * 600mm
Floating range: X-axis 400MM, Y-axis 300MM
Inspection standards
YY/T0741-2018 Execution on 5.5
Testing standards
YY/T0741-2018 6.5 Execution
Production process diagram
Installation and debugging
surface treatment
machining
Acceptance and warehousing
Blanking

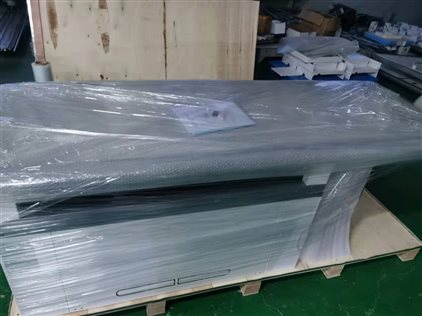

Packaging and transportation

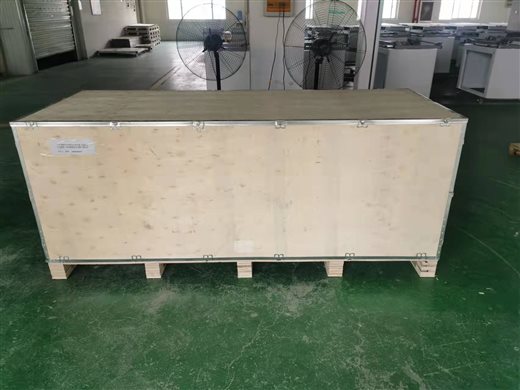

Wooden box packaging: 2800mm * 1000 * 1000
Weight: 350KG
WeChat images_ 20220105023508 WeChat pictures_ twenty trillion and two hundred and twenty billion one hundred and five million twenty-three thousand seven hundred and thirteen
